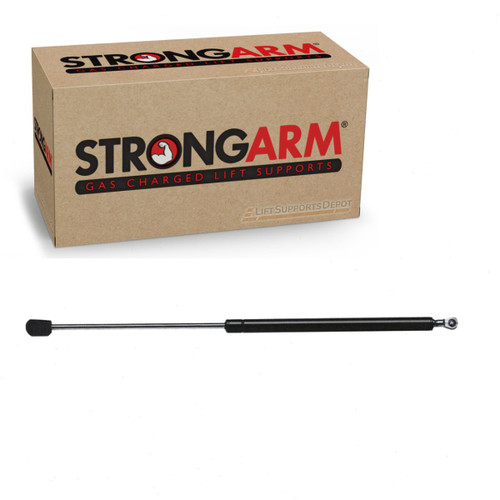

The Strong Arm 4316 fits the rear glass window on Chevrolet Blazer, Gmc Jimmy, Oldsmobile Bravada 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and is compatible with 95744, 15708521, 251707, 2816EL, 3343LH, 4316, 8194148, 8194171, D95744, SG330022, SG330022 and OEM Parts.
- SKU: 4316-W
- A Interchanges: 95744, 15708521, 251707, 2816EL, 3343LH, 4316, 8194148, 8194171, D95744, SG330022, SG330022
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- Body Connection: Swivel Eyelet
- Compressed Length B [in]: 11.45
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: Other
- End Fitting Type: Ball Socket
- Extended Length A [in]: 19.01
- Finish: Black
- Force (Lbs): 42
- Force Newtons: 187
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Rear Glass Window | 4316
- Quantity Sold As: Each
- Ref Code: 8
- Rod Diameter (MM): 6
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 10 Deg Angle
- Stroke C [in]: 7.56
- UPC: 43645710095
- Vehicle Location: Rear Glass Window
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
