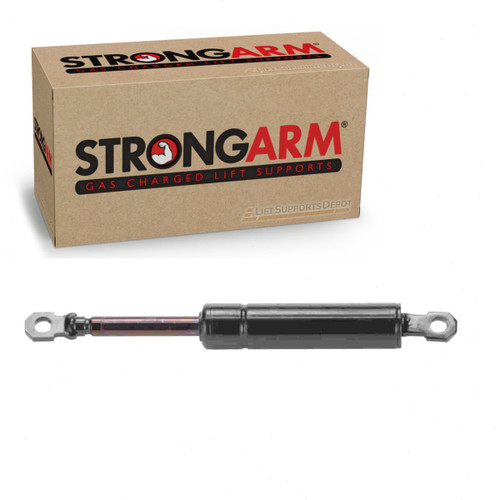

Strong Arm 6952 lift support for the 1990-1993 Cadillac Allante convertible top. 5.9 in extended length, 92 lbs of force, a 6 mm eyelet (1/4 in) body end and a 6 mm eyelet (15/64 in) shaft end, and 4.4 in compressed length. Replaces the original support to bring a sagging or slow-closing convertible top back to proper lift and hold. Fitment note: With Large Mounting Holes. Sold one per unit; replacing the pair keeps lift force even. Stroke is 1.5 in. The rod measures 8 mm and the cylinder 18 mm. Includes a 1-year warranty.
- SKU: 6952-W
- A Interchanges: 96952, 239996, 310609100, 5462KI, 64254763, 6952, 718026, F96952, SG430012, SG430012
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- Body Connection: Eyelet Hole=6mm=1/4"=.24"
- Compressed Length B [in]: 4.40
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 6MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 5.90
- Finish: Black
- Force (Lbs): 92
- Force Newtons: 409
- Include In Length Search: Yes
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Convertible Top | 6952
- Quantity Sold As: Each
- Ref Code: 14
- Rod Diameter (MM): 8
- Shaft Connection: Eyelet Hole=6mm=15/64"=.24"
- Stroke C [in]: 1.50
- UPC: 845998010781
- Vehicle Location: Convertible Top
2 Reviews Hide Reviews Show Reviews
-
Good product
Worked like they should
-
Strut conversion
Used these to retrofit the broken trunk springs on my Solstice
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
