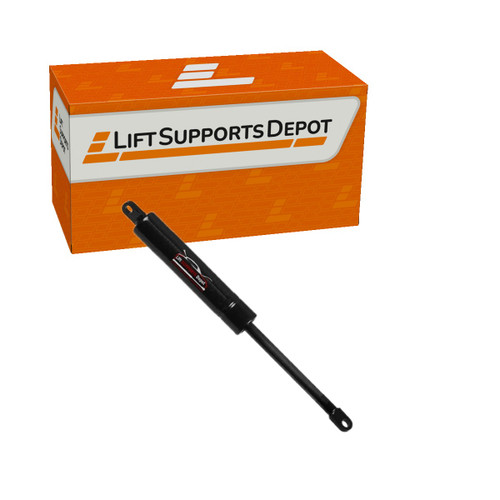

Lift Supports Depot PM3407 lift support for the 1990-1993 Cadillac Allante convertible top. 5.98 in extended length, 85 lbs of force, 4 mm eyelet (5/32 in) end fittings, and 3.62 in compressed length. Direct-fit replacement for the original support, restoring proper lift and hold on a sagging or failing convertible top. Fitment note: With Smaller Mouting Holes (Identical To OEM). Sold individually; replacing both sides is recommended. Stroke is 2.36 in. The rod measures 6 mm and the cylinder 15 mm. Backed by a 1-year warranty.
- SKU: PM3407-W
- A Interchanges: 239996, 310609100, 5462KI, 64254763, 718026, PM3407, SG430012
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- Body Connection: Eyelet Hole=4mm=5/32"=.16"
- Compressed Length B [in]: 3.62
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: Other
- End Fitting Type: Eyelet
- Extended Length A [in]: 5.98
- Finish: Black
- Force (Lbs): 85
- Force Newtons: 378
- Include In Length Search: YES
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Convertible Top | PM3407
- Quantity Sold As: Each
- Ref Code: 53
- Rod Diameter (MM): 6
- Shaft Connection: Eyelet Hole=4mm=5/32"=.16"
- Stroke C [in]: 2.36
- Vehicle Location: Convertible Top
