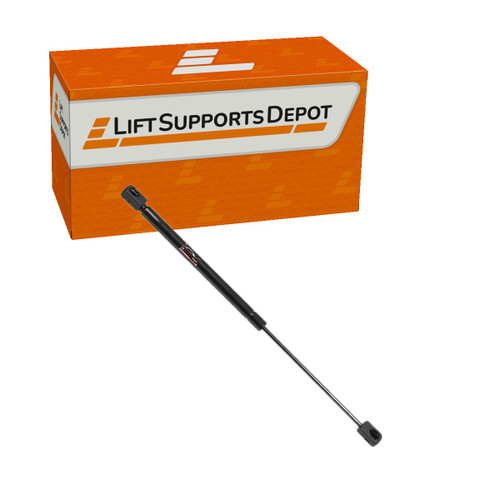

The Lift Supports Depot PM1062 fits the liftgate on Cadillac Escalade, Chevrolet Suburban, Chevrolet Tahoe, XL, XL, XL, Gmc Yukon XL 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and is compatible with 15827434, 15854712, 20952718, 22743451, 22743452, 22902995, 84360923, 92096293, 10029990, 15827433, 15854712, 22743451, 24851, 25060, 4482YC, 4705WW, 6156, 9173VX, 9524VU, PM1062, SG330076, SG330077 and OEM Parts. Includes a Limited 1 Year Warranty.
- SKU: PM1062-W
- A Interchanges: 15827434, 15854712, 20952718, 22743451, 22743452, 22902995, 84360923, 92096293, 10029990, 15827433, 15854712, 22743451, 24851, 25060, 4482YC, 4705WW, 6156, 9173VX, 9524VU, PM1062, SG330076, SG330077
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 14.88
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 22.83
- Finish: Black
- Force (Lbs): 244
- Force Newtons: 1085
- Include In Length Search: NO
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM1062
- Quantity Sold As: Each
- Ref Code: 57
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 7.87
- Vehicle Location: Liftgate
7 Reviews Hide Reviews Show Reviews
-
A perfect match
Super fast delivery of my lift supports. I had the old ones off and new ones on in 10 minutes! Life is easier again
-
Lift Supports
Quick shipping. Easy to install. Excellent product.
-
Easy install
Easy installation with one screwdriver and that was only used to take off the old supports. Took me 10 minutes tops to do the job.
-
22.83 lift supports
Worked perfectly- EASY install!!
Really helps to have a second person to hold the tailgate open!! -
Perfect fit and fixed my tailgate not opening
Your website was awesome. Made it very easy to find the correct lift support. Thank you !!
-
Easy to install
Was easy to install. So far, it works great.
-
Shock support for rear lift gate
Easy peasy. Fast delivery.
