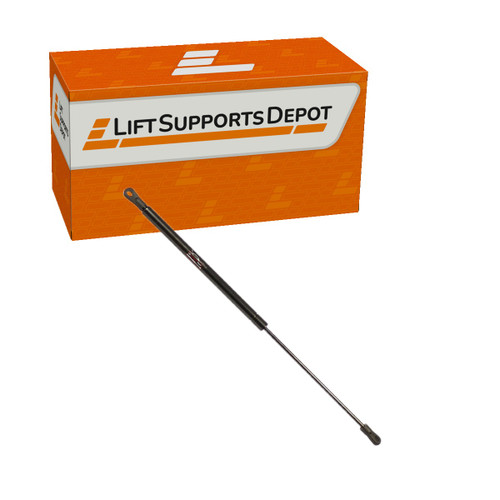

Lift Supports Depot PM1068 lift support for the 2007-2016 Suzuki Burgman 400 seat. 13.11 in extended length, 48 lbs of force, and 8.23 in compressed length. Replaces the original support to bring a sagging or slow-closing seat back to proper lift and hold. Fitment note: Seat With Attached Backrest. Sold one per unit; replacing the pair keeps lift force even. Stroke is 4.8 in. The rod measures 6 mm and the cylinder 15 mm. Finished in black. Includes a 1-year warranty.
- SKU: PM1068-W
- A Interchanges: 0515WI, 4527005H00, 45270-05H00, 4527005H01, 45270-05H01, 548884, PM1068
- Compressed Length B [in]: 8.23
- Custom Qty: 1
- Cylinder Diameter (MM): 15
- End Fitting Size: Other
- End Fitting Type: Other
- Extended Length A [in]: 13.11
- Finish: Black
- Force (Lbs): 48
- Force Newtons: 214
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Seat Adjuster | PM1068
- Quantity Sold As: Each
- Ref Code: 11
- Rod Diameter (MM): 6
- Stroke C [in]: 4.80
- Vehicle Location: Seat Adjuster
