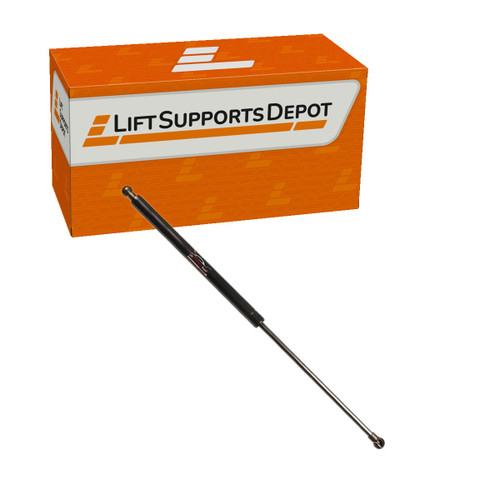

Lift Supports Depot PM3304M13 gas-charged lift support with 23.05 in extended length, 300 lbs of force, 13 mm ball socket long cup (steel) type (1/2 in) end fittings, and 15.8 in compressed length. Suits hoods, hatches, liftgates, tonneau covers, truck caps, toolboxes, campers, and RV or marine applications matching these specifications. Stroke is 7.25 in. The rod measures 10 mm and the cylinder 22 mm. Finished in black. Backed by a 1-year warranty.
- SKU: PM3304M13-W
- A Interchanges: PM3304M13
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- Body Connection: Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50"
- Compressed Length B [in]: 15.80
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 13MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 23.05
- Finish: Black
- Force (Lbs): 300
- Force Newtons: 1334
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Universal 13MM End Fittings | PM3304M13
- Quantity Sold As: Each
- Ref Code: 44
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50"
- Stroke C [in]: 7.25
- Vehicle Location: Universal 13MM End Fittings
1 Review Hide Reviews Show Reviews
-
Gator lift assist
This lift support is better than the original. Helps raise the cargo box with one hand.
