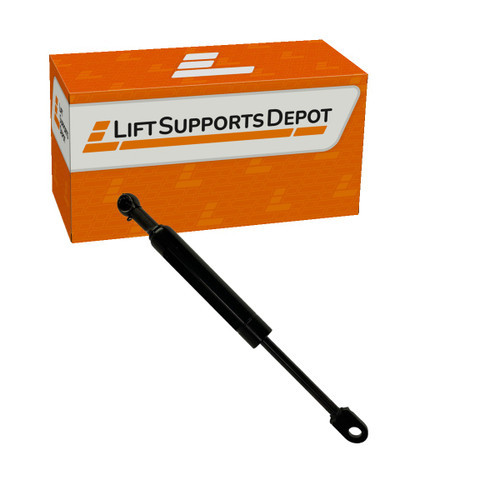

Lift Supports Depot PM3403 lift support for the 1989-1995 BMW 525I rear glass window. 6.93 in extended length, 119 lbs of force, a 8 mm ball socket (5/16 in) body end and a 8 mm eyelet (5/16 in) shaft end, and 4.49 in compressed length. Direct-fit replacement for the original support, restoring proper lift and hold on a sagging or failing rear glass window. Also fits the 1989-1995 BMW 525IT, 1993-1995 BMW 530I, and 1993-1995 BMW 530IT. Fitment note: These Are For The Rear Window And Not The Tailgate. Sold individually; replacing both sides is recommended. Backed by a 1-year warranty.
- SKU: PM3403-W
- A Interchanges: 51 24 8 120 172, 51248120172, 7101FU, 8 120 172, 8120172, 8196371, PM3403, SG402021
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocket8mm51632.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocket8mm51632.gif
- Body Connection: Ball Socket U Band (Nylon)=8mm=5/16"=.32"
- Compressed Length B [in]: 4.49
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: 8MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 6.93
- Finish: Black
- Force (Lbs): 119
- Force Newtons: 529
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Rear Glass Window | PM3403
- Quantity Sold As: Each
- Ref Code: 13
- Rod Diameter (MM): 6
- Shaft Connection: Eyelet Hole=8mm=5/16"=.32"
- Stroke C [in]: 2.44
- Vehicle Location: Rear Glass Window
