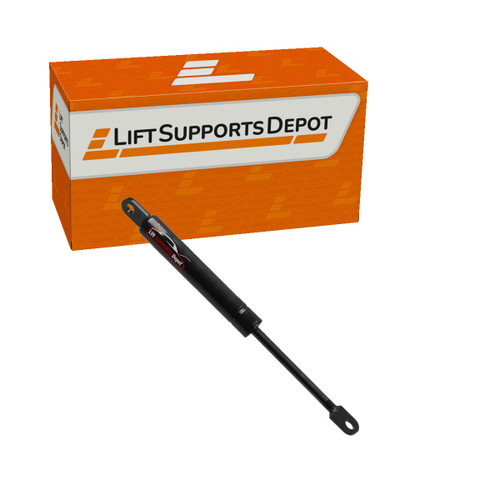

Lift Supports Depot PM3529U gas-charged lift support with 7.37 in extended length, 34 lbs of force, 6 mm eyelet (15/64 in) end fittings, and 4.57 in compressed length. Cross-references 1396843, 1911584, 192864, SG414003. Stroke is 2.72 in. The rod measures 6 mm and the cylinder 15 mm. Finished in black. Includes a 1-year warranty.
- SKU: PM3529U-W
- A Interchanges: 1396843, 1911584, 192864, PM3529U, SG414003
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/bld2.gif
- Body Connection: Eyelet Hole=6mm=15/64"=.24"
- Compressed Length B [in]: 4.57
- Custom Qty: 1
- Cylinder Diameter (MM): 15
- End Fitting Size: 6MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 7.37
- Finish: Black
- Force (Lbs): 34
- Force Newtons: 151
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Universal | PM3529U
- Quantity Sold As: Each
- Ref Code: 21
- Rod Diameter (MM): 6
- Shaft Connection: Eyelet Hole=6mm=15/64"=.24"
- Stroke C [in]: 2.72
- Vehicle Location: Universal
