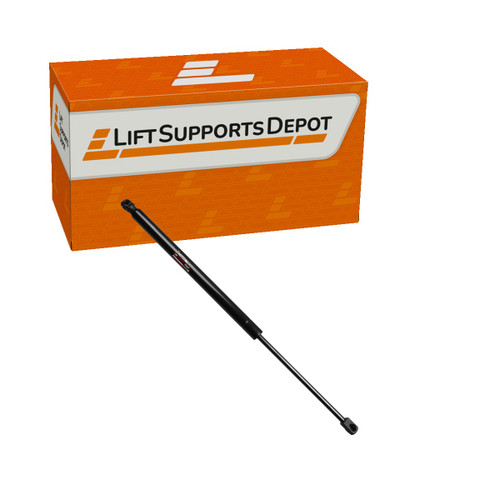

Lift Supports Depot PM3553 lift support for the 2011-2015 Volkswagen Touran liftgate. 19.25 in extended length, 205 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 13.07 in compressed length. Direct-fit replacement that restores full lift and hold to a liftgate that has started to sag or drift down. Fitment note: 1T3. Sold individually. Most applications use two, so replace both together. Cross-references 1T0 827 550 H, 1T08275850H. Stroke is 6.18 in. The rod measures 10 mm and the cylinder 22 mm. Covered by a 1-year warranty.
- SKU: PM3553-W
- A Interchanges: 1T0 827 550 H, 1T0827550H, 1T08275850H, PM3553
- Compressed Length B [in]: 13.07
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: Other
- End Fitting Type: Ball Socket
- Extended Length A [in]: 19.25
- Finish: Black
- Force (Lbs): 205
- Force Newtons: 912
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM3553
- Quantity Sold As: Each
- Ref Code: 11
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 6.18
- UPC: 840265737989
- Vehicle Location: Liftgate
