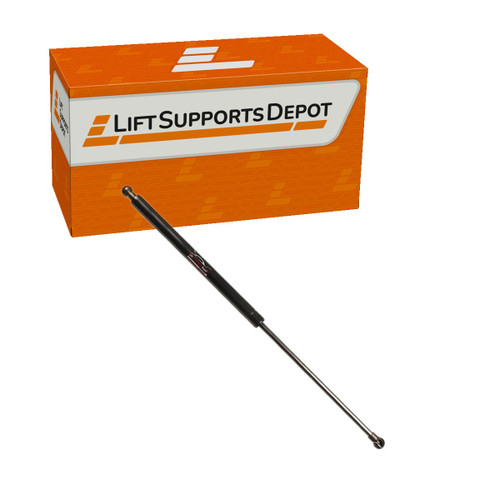

Lift Supports Depot PM3643 lift support for the 2010-2011 Volvo XC60 liftgate. 22.05 in extended length, 142 lbs of force, 13 mm ball socket short cup (steel) type (1/2 in) end fittings, and 14.49 in compressed length. Replaces the original support to bring a sagging or slow-closing liftgate back to proper lift and hold. Fitment note: With Power Liftgate Right Side Non Powered. Sold one per unit; replacing the pair keeps lift force even. Stroke is 7.56 in. The rod measures 10 mm and the cylinder 22 mm. Includes a 1-year warranty.
- SKU: PM3643-W
- A Interchanges: 31297524, 31335392, 31 297 156, 31 297 524, 31 335 392, 31297156, PM3643
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketshortsteel13mm1250.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketshortsteel13mm1250.gif
- Body Connection: Ball Socket Short Cup (Steel) Type=13mm=1/2"=.50"
- Compressed Length B [in]: 14.49
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 13MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 22.05
- Finish: Black
- Force (Lbs): 142
- Force Newtons: 632
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM3643
- Quantity Sold As: Each
- Ref Code: 34
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket Short Cup (Steel) Type=13mm=1/2"=.50"
- Stroke C [in]: 7.56
- Vehicle Location: Liftgate
