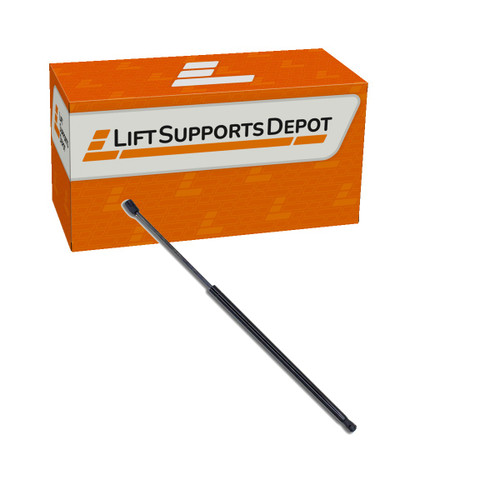

Lift Supports Depot PM3731 lift support for the 2013-2017 Hyundai Elantra GT hatch. 19.84 in extended length, 10 mm ball socket (3/8 in) end fittings, and 12.62 in compressed length. Direct-fit replacement that restores full lift and hold to a hatch that has started to sag or drift down. Sold individually. Most applications use two, so replace both together. Cross-references 81770A500, 81780A500. Stroke is 7.25 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Covered by a 1-year warranty.
- SKU: PM3731-W
- A Interchanges: 81770A500, 81770-A500, 81780A500, 81780-A500, PM3731
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 12.62
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Other
- Extended Length A [in]: 19.84
- Finish: Black
- Force (Lbs): 0
- Force Newtons: 0
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Hatch | PM3731
- Quantity Sold As: Each
- Ref Code: 20
- Rod Diameter (MM): 8
- Stroke C [in]: 7.25
- UPC: 840265748220
- Vehicle Location: Hatch
