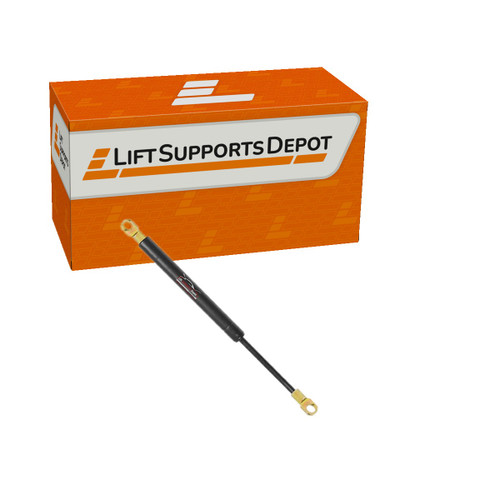

Lift Supports Depot SX100P20E39 gas-charged lift support with 10.35 in extended length, 20 lbs of force, 10 mm eyelet (3/8 in) end fittings, and 7.35 in compressed length. Cross-references 12169, 4539BB, 50020, 8195583, 9522VD, C1615049, CE390020, GP50020, GP50020P, GP52040P, GP6602P, GS50020. Stroke is 3.5 in. The rod measures 6 mm and the cylinder 15 mm. Finished in black. Includes a 1-year warranty.
- SKU: SX100P20E39-W
- A Interchanges: 12169, 4539BB, 50020, 8195583, 9522VD, C1615049, C16-15049, CE390020, CE3900-20, GP50020, GP50020P, GP52040P, GP6602P, GS50020, ML1020, ML10-20, ML-10-20, ML3020, ML30-20, ML-30-20, NI20020, NI200-20, NI-20020, NI-200-20
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- Body Connection: Eyelet Hole=10mm=3/8"=.39"
- Compressed Length B [in]: 7.35
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: 10MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 10.35
- Finish: Black
- Force (Lbs): 20
- Force Newtons: 89
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Universal | SX100P20E39
- Quantity Sold As: Each
- Ref Code: 13
- Rod Diameter (MM): 6
- Shaft Connection: Eyelet Hole=10mm=3/8"=.39"
- Stroke C [in]: 3.50
- Vehicle Location: Universal
