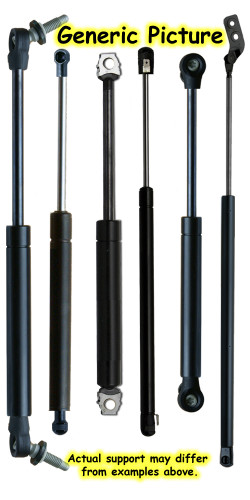

Stabilus SG259014 gas-charged lift support with 27.99 in extended length, 148 lbs of force, 13 mm ball socket cup (steel) (1/2 in) end fittings, and 16 in compressed length. Replaces SG159007. Stroke is 11.99 in. The rod measures 10 mm and the cylinder 22 mm. Finished in black. Covered by a 1-year warranty.
- SKU: SG259014-W
- A Interchanges: SG159007, SG259014
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- Body Connection: Ball Socket Cup (Steel)=13mm=1/2"=.50"
- Compressed Length B [in]: 16.00
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 13MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 27.99
- Finish: Black
- Force (Lbs): 148
- Force Newtons: 658
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Stabilus
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/stabiluswhitesmallb.gif
- Name (Fitment): Made by Stabilus | SG259014
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket Cup (Steel)=13mm=1/2"=.50"
- Stroke C [in]: 11.99
- UPC: 708609430906
