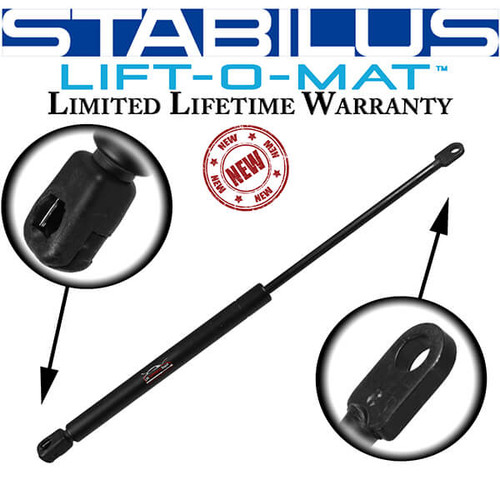

Stabilus SG312003 lift support for the 1981-1991 Peugeot 505 trunk. 16.5 in extended length, 81 lbs of force, a 10 mm ball socket (3/8 in) body end and a 8 mm eyelet (5/16 in) shaft end, and 10.2 in compressed length. Replaces the original support to bring a sagging or slow-closing trunk back to proper lift and hold. Sold one per unit; replacing the pair keeps lift force even. Stroke is 6.3 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Includes a 1-year warranty.
- SKU: SG312003-W
- A Interchanges: 248169, 610685, 9252280980, SG312003
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 10.20
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 16.50
- Finish: Black
- Force (Lbs): 81
- Force Newtons: 360
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Stabilus
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/stabiluswhitesmallb.gif
- Name (Fitment): Made by Stabilus Fits the Trunk | sg312003
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Eyelet Hole=8mm=5/16"=.32"
- Stroke C [in]: 6.30
- UPC: 708609089470
- Vehicle Location: Trunk
