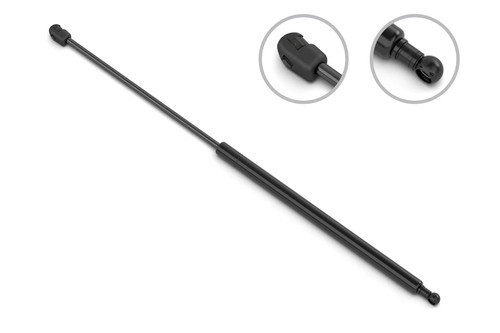

Stabilus SG314017 lift support for the 1994-1998 Jeep Grand Cherokee rear glass window. 18.62 in extended length, 19 lbs of force, a 8 mm ball socket (5/16 in) body end and a 10 mm ball socket (3/8 in) shaft end, and 10.85 in compressed length. Direct-fit replacement for the original support, restoring proper lift and hold on a sagging or failing rear glass window. Sold individually; replacing both sides is recommended. Stroke is 7.78 in. The rod measures 6 mm and the cylinder 15 mm. Finished in black. Backed by a 1-year warranty.
- SKU: SG314017-W
- A Interchanges: 10658, 2379IG, 4678, 8194748, SG314017
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocket8mm51632.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocket8mm51632.gif
- Body Connection: Ball Socket U Band (Nylon)=8mm=5/16"=.32"
- Compressed Length B [in]: 10.85
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: 8MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 18.62
- Finish: Black
- Force (Lbs): 19
- Force Newtons: 85
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Stabilus
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/stabiluswhitesmallb.gif
- Name (Fitment): Made by Stabilus Fits the Rear Glass Window | sg314017
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 6
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 7.78
- UPC: 708609078016
- Vehicle Location: Rear Glass Window
