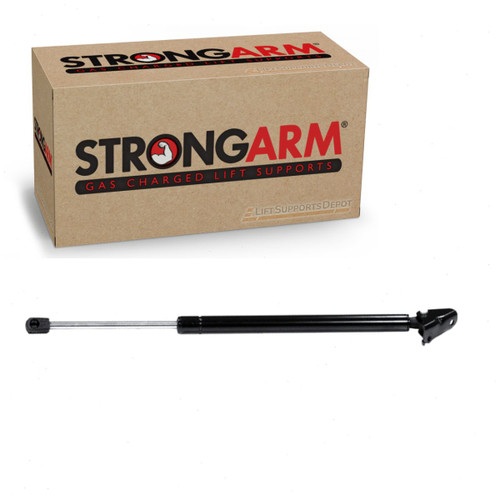

Strong Arm 4856 gas-charged lift support with 18.66 in extended length, 196 lbs of force, a captive ball eyelet w/bracket body end and a 10 mm ball socket (3/8 in) shaft end, and 13.11 in compressed length. Cross-references 95572, 010655, 10655, 10656, 295207, 2AML 4857AA, 4857, 5507 4783, 5507 5705, 5507 5705AB, 55074782AB, 55074783AB. Stroke is 5.55 in. The rod measures 10 mm and the cylinder 22 mm. Finished in black. Includes a 1-year warranty.
- SKU: 4856-W
- A Interchanges: 95572, 010655, 10655, 10656, 295207, 2AML 4857AA, 2AML4857AA, 4856, 4857, 5507 4783, 5507 5705, 5507 5705AB, 55074782AB, 55074783, 55074783AB, 55075704, 55075704AB, 55075705, 55075705AB, 55075760, 55075761, 612881, 72761
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/tdn128m8x125.gif
- Body Connection: Captive Ball Eyelet w/Bracket
- Compressed Length B [in]: 13.11
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: Other
- End Fitting Type: Ball Socket
- Extended Length A [in]: 18.66
- Finish: Black
- Force (Lbs): 196
- Force Newtons: 872
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Liftgate | 4856
- Quantity Sold As: Each
- Ref Code: 1
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 5.55
- UPC: 43645642020
- Vehicle Location: Liftgate
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
