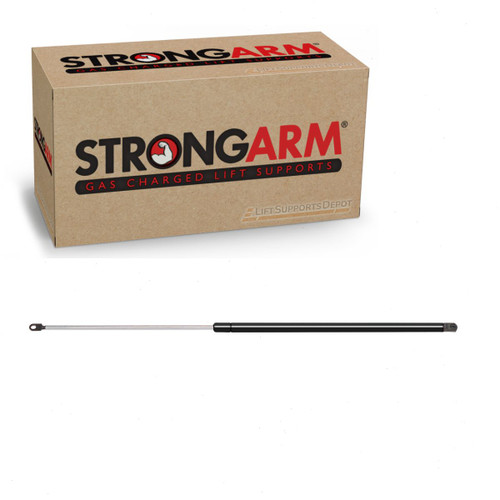

Strong Arm 6266 gas-charged lift support with 18.74 in extended length, 68 lbs of force, a 10 mm ball socket (3/8 in) body end and a 8.33 mm eyelet (21/64 in) shaft end, and 11.49 in compressed length. Cross-references 96266, D96266, SG312005. Stroke is 7.25 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Includes a 1-year warranty.
- SKU: 6266-W
- A Interchanges: 96266, 6266, D96266, SG312005, SG312005
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 11.49
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Eyelet
- Extended Length A [in]: 18.74
- Finish: Black
- Force (Lbs): 68
- Force Newtons: 302
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Trunk | 6266
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Eyelet Hole=8.33mm=21/64"=.33"
- Stroke C [in]: 7.25
- UPC: 845998011184
- Vehicle Location: Trunk
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
