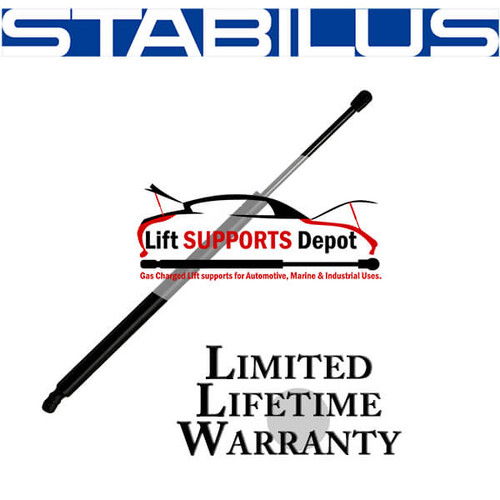

Stabilus SG230077 gas-charged lift support with 22.82 in extended length, 244 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 16.71 in compressed length. Replaces 024851, 10029990, 15827433, 15854712, 22743451, 25060, 4482YC, 4705WW, 6156, 9173VX, 9524VU, SG330077. Stroke is 6.11 in. The rod measures 10 mm and the cylinder 22 mm. Finished in black. Covered by a 1-year warranty.
- SKU: SG230077-W
- A Interchanges: 024851, 10029990, 15827433, 15854712, 22743451, 25060, 4482YC, 4705WW, 6156, 9173VX, 9524VU, SG230077, SG330077
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 16.71
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 22.82
- Finish: Black
- Force (Lbs): 244
- Force Newtons: 1085
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Stabilus
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/stabiluswhitesmallb.gif
- Name (Fitment): Made by Stabilus Fits the Liftgate | SG230077
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 6.11
- Vehicle Location: Liftgate
