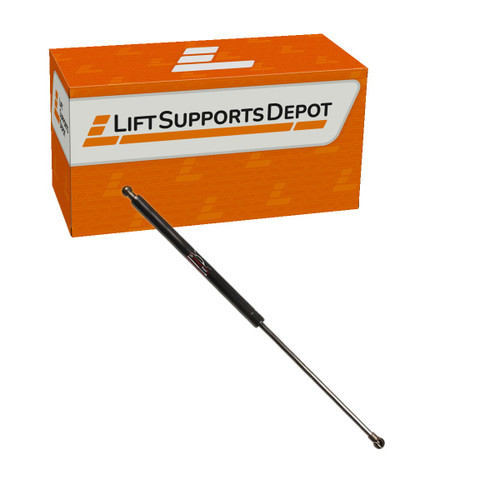

Lift Supports Depot 4288M10 gas-charged lift support with 26.76 in extended length, 88 lbs of force, 10 mm ball socket cup (steel) type (3/8 in) end fittings, and 16.64 in compressed length. Replaces 4288. Stroke is 10.2 in. The rod measures 8 mm and the cylinder 19 mm. Finished in black. Covered by a 1-year warranty.
- SKU: 4288M10-W
- A Interchanges: 4288, 4288M10
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/rd222m6x100.gif
- Body Connection: Ball Socket Cup (Steel) Type =10mm=3/8"=.39"
- Compressed Length B [in]: 16.64
- Custom Qty: 2
- Cylinder Diameter (MM): 19
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 26.76
- Finish: Black
- Force (Lbs): 88
- Force Newtons: 391
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Universal | 4288M10
- Quantity Sold As: Each
- Ref Code: 6
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket Cup (Steel) Type =10mm=3/8"=.39"
- Stroke C [in]: 10.20
- Vehicle Location: Universal
