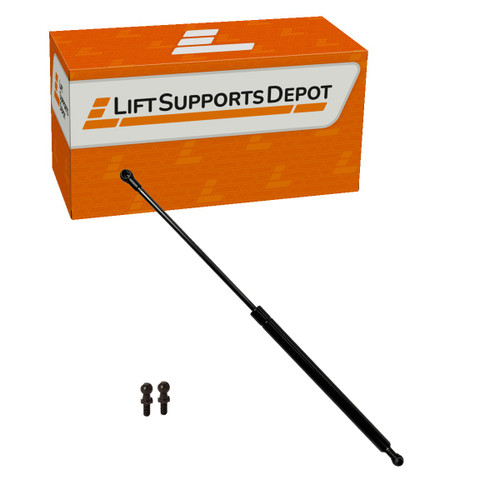

Lift Supports Depot P10395 gas-charged lift support for industrial equipment with 19.76 in extended length, 72 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 11.73 in compressed length. Direct replacement for 570MXT, 580 Super L (Turbo), 580D, 580K, 580L, 580SD, 580SE, 580SK?580 Super L, 590 Super L, 590 Super L (Turbo)?680H, 680K, 680L?780B (Turbo). Sold individually. Most applications use two, so replace both together. Stroke is 8.03 in. The rod measures 8 mm and the cylinder 19 mm. Covered by a 1-year warranty.
- SKU: P10395-W
- A Interchanges: 570MXT, 580 SUPER L (TURBO), 580D, 580K, 580L, 580SD, 580SE, 580SK?580 SUPER L, 590 SUPER L, 590 SUPER L (TURBO)?680H, 680K, 680L?780B (TURBO), 780C, 780D, 128461A2, 590 (TURBO), F44881
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 11.73
- Custom Qty: 1
- Cylinder Diameter (MM): 19
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 19.76
- Finish: Black
- Force (Lbs): 72
- Force Newtons: 320
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Industrial | P10395
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 8.03
- UPC: 840265755679
- Vehicle Location: Industrial
