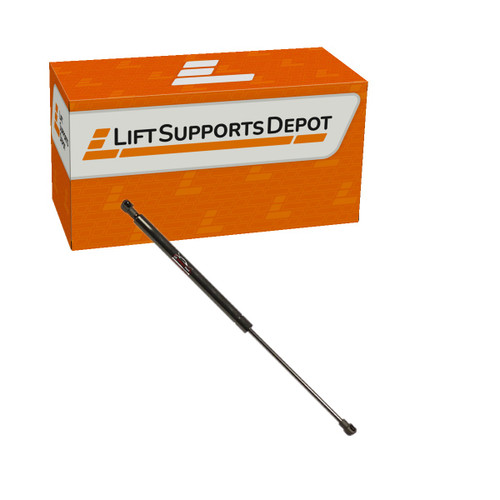

Lift Supports Depot PM1070 lift support for the 2008-2013 Smart Fortwo rear glass window. 17.52 in extended length, 29 lbs of force, 10 mm ball socket short (3/8 in) end fittings, and 10.16 in compressed length. Replaces the original support to bring a sagging or slow-closing rear glass window back to proper lift and hold. Sold one per unit; replacing the pair keeps lift force even. Stroke is 7.09 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Includes a 1-year warranty.
- SKU: PM1070-W
- A Interchanges: 16618, 2515TE, 451 988 00 04, 451988004, 52113, 926330040001, 926-330040-001, 9263304001, A 451 988 00 04, A451988004, PM1070, SE172P25N10S, SG357001
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- Body Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 10.16
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 17.52
- Finish: Black
- Force (Lbs): 29
- Force Newtons: 129
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Rear Glass Window | PM1070
- Quantity Sold As: Each
- Ref Code: 55
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39" 10 Deg Angle
- Stroke C [in]: 7.09
- Vehicle Location: Rear Glass Window
