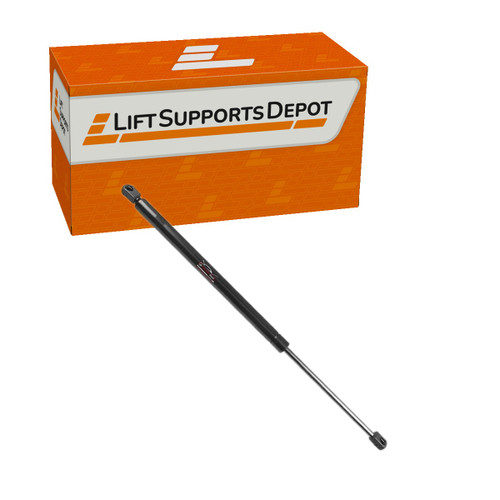

Lift Supports Depot PM3011 lift support for the 2001-2005 Mazda Tribute liftgate. 21.77 in extended length, 139 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 14.21 in compressed length. Direct-fit replacement for the original support, restoring proper lift and hold on a sagging or failing liftgate. Fitment note: Fits The Liftgate (Not The Rear Window). Sold individually; replacing both sides is recommended. Stroke is 7 in. The rod measures 8 mm and the cylinder 22 mm. Finished in black. Backed by a 1-year warranty.
- SKU: PM3011-W
- A Interchanges: 14188, 7649QM, 8196082, EC0162620A, PM3011, ZZC062610, ZZC0-62-610, SG227006
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 14.21
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 21.77
- Finish: Black
- Force (Lbs): 139
- Force Newtons: 618
- Include In Length Search: Yes
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM3011
- Quantity Sold As: Each
- Ref Code: 28
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 7.00
- Vehicle Location: Liftgate
