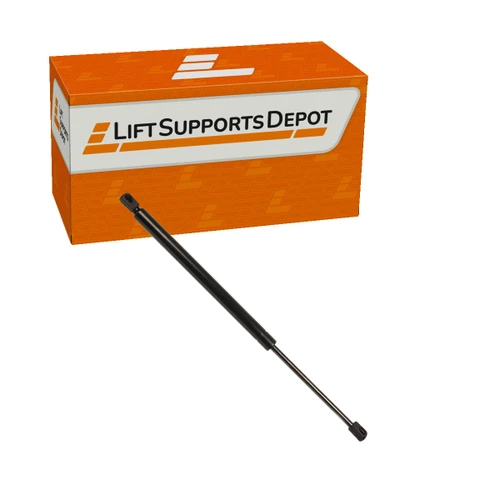

Lift Supports Depot PM3104 lift support for the 2003-2007 Honda Pilot liftgate. 25.35 in extended length, 146 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 17.76 in compressed length. Replaces the original support to bring a sagging or slow-closing liftgate back to proper lift and hold. Sold one per unit; replacing the pair keeps lift force even. Stroke is 7.5 in. The rod measures 10 mm and the cylinder 22 mm. Finished in black. Includes a 1-year warranty.
- SKU: PM3104-W
- A Interchanges: 4214TO, 4674TE, 6906XK, 6955XM, 74820S9VA01, 74820-S9V-A01, 74820S9VA021, 74820-S9V-A021, 74870S9VA01, 74870-S9V-A01, 74870S9VA021, 74870-S9V-A021, PM3104, SG226013
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 17.76
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 25.35
- Finish: Black
- Force (Lbs): 146
- Force Newtons: 649
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM3104
- Quantity Sold As: Each
- Ref Code: 17
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 7.50
- Vehicle Location: Liftgate
