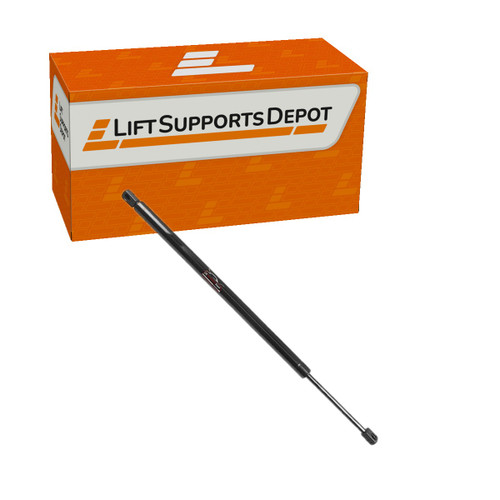

Lift Supports Depot PM3149 lift support for the 2010-2017 Chevrolet Equinox liftgate. 23.27 in extended length, 185 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 17.44 in compressed length. Direct-fit replacement that restores full lift and hold to a liftgate that has started to sag or drift down. Fitment note: Without Power Liftgate. Sold individually. Most applications use two, so replace both together. Cross-references 23408401, 25800491, 25800492, 84131448, 23408400, SG230136. Stroke is 5.75 in. Covered by a 1-year warranty.
- SKU: PM3149-W
- A Interchanges: 23408401, 25800491, 25800492, 84131448, 23408400, 23408401, 25800491, 25800492, PM3149, SG230136
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 17.44
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 23.27
- Finish: Black
- Force (Lbs): 185
- Force Newtons: 823
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Liftgate | PM3149
- Quantity Sold As: Each
- Ref Code: 115
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Stroke C [in]: 5.75
- Vehicle Location: Liftgate
