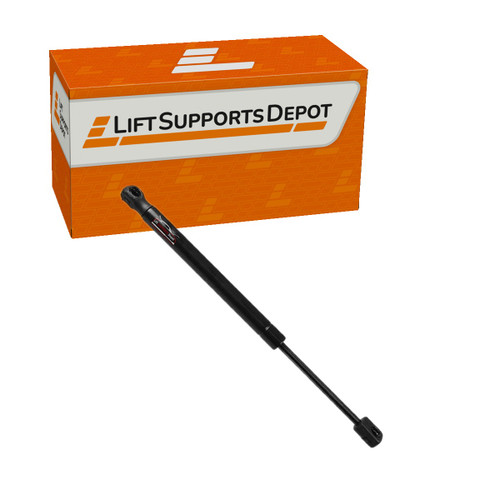

Lift Supports Depot PM3175 lift support for the 2007-2009 KIA Amanti trunk. 13.19 in extended length, 112 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 8.74 in compressed length. Direct-fit replacement that restores full lift and hold to a trunk that has started to sag or drift down. Also fits the 2007-2009 KIA Opirus. Sold individually. Most applications use two, so replace both together. Cross-references 5252VU, 817713F500, 817713F501. Stroke is 4.45 in. The rod measures 8 mm and the cylinder 18 mm. Covered by a 1-year warranty.
- SKU: PM3175-W
- A Interchanges: 5252VU, 817713F500, 81771-3F500, 817713F501, 81771-3F501, PM3175
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 8.74
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 13.19
- Finish: Black
- Force (Lbs): 112
- Force Newtons: 498
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Trunk | PM3175
- Quantity Sold As: Each
- Ref Code: 2
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 4.45
- Vehicle Location: Trunk
