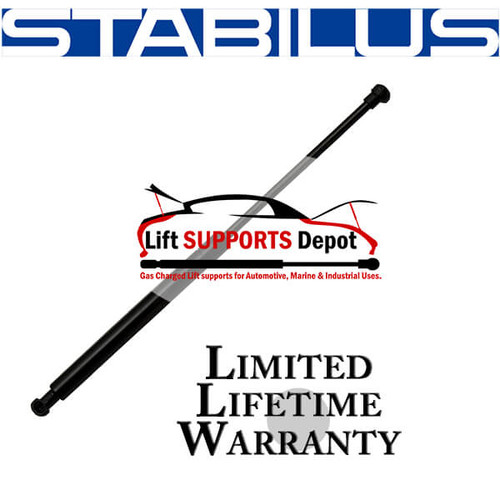

Stabilus SG329018 gas-charged lift support with 19.13 in extended length, 90 lbs of force, 10 mm ball socket short (3/8 in) end fittings, and 11.81 in compressed length. Cross-references 4781VZ, 689500W210, 689500W361, 689600W200, 689600W361, 752916, 8196293, SE775A90, SG329019. Stroke is 7.32 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Includes a 1-year warranty.
- SKU: SG329018-W
- A Interchanges: 4781VZ, 689500W210, 689500W361, 689600W200, 689600W361, 752916, 8196293, SE775A90, SE775A-90, SG329018, SG329019
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- Body Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 11.81
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 19.13
- Finish: Black
- Force (Lbs): 90
- Force Newtons: 400
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Stabilus
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/stabiluswhitesmallb.gif
- Name (Fitment): Made by Stabilus Fits the Hatchback | sg329018
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 7.32
- UPC: 708609190886
- Vehicle Location: Hatchback
