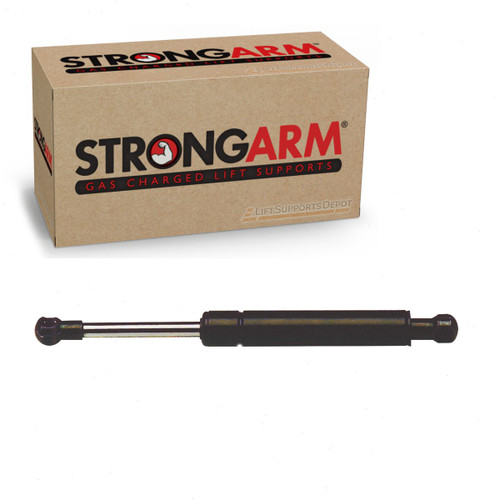

Strong Arm 4540 lift support for the 1993-2001 BMW 740IL hood. 12.8 in extended length, 198 lbs of force, a 10 mm ball socket (3/8 in) body end and a 10 mm ball socket short (3/8 in) shaft end, and 8.8 in compressed length. Replaces the original support to bring a sagging or slow-closing hood back to proper lift and hold. Also fits the 1993-2001 BMW 750IL and 1 other application. Fitment note: Body Code: E38- Non Aluminum Hood. Sold one per unit; replacing the pair keeps lift force even. Stroke is 4 in. Includes a 1-year warranty.
- SKU: 4540-W
- A Interchanges: 95910, 13685, 3293GE, 4540, 51 23 8 150 077, 51238150077, 613813, 6199ZQ, 8194194, E95910, SG402028, SG402028
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 8.80
- Custom Qty: 2
- Cylinder Diameter (MM): 19
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 12.80
- Finish: Black
- Force (Lbs): 198
- Force Newtons: 881
- Include In Length Search: Yes
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Hood | 4540
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 4.00
- UPC: 43645711276
- Vehicle Location: Hood
1 Review Hide Reviews Show Reviews
-
Gas spring for Lak-17A sailplane canopy.
This gas spring is an improvement over what is available from the US dealer of Lak-17 gliders. Slightly different spacers are required. Installation was easy.
Thank you!
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
