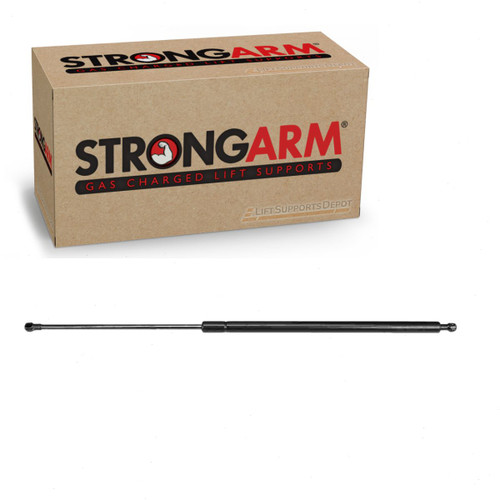

Strong Arm 6289 lift support for the 2006-2010 Hummer H3 rear door. 25 in extended length, 56 lbs of force, 10 mm ball socket short (3/8 in) end fittings, and 16 in compressed length. Direct-fit replacement that restores full lift and hold to a rear door that has started to sag or drift down. Sold individually. Most applications use two, so replace both together. Cross-references 96289, 15864389, 251911, 252150, 4676WJ, C96289, SG230109. Stroke is 9 in. The rod measures 8 mm and the cylinder 18 mm. Covered by a 1-year warranty.
- SKU: 6289-W

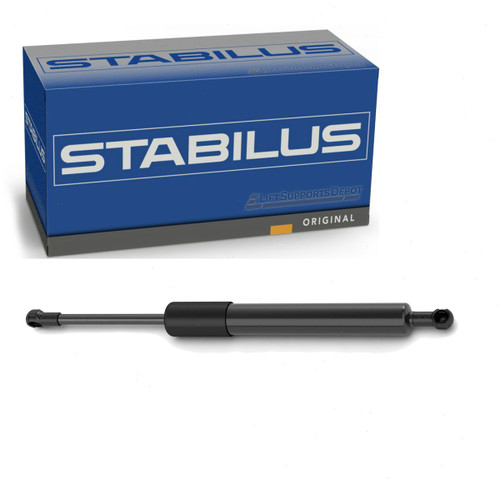

- A Interchanges: 96289, 15864389, 251911, 252150, 4676WJ, 6289, C96289, SG230109
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1804.gif
- Body Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 16.00
- Custom Qty: 1
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 25.00
- Finish: Black
- Force (Lbs): 56
- Force Newtons: 249
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Rear Door | 6289
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band Short (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 9.00
- UPC: 845998012181
- Vehicle Location: Rear Door
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
