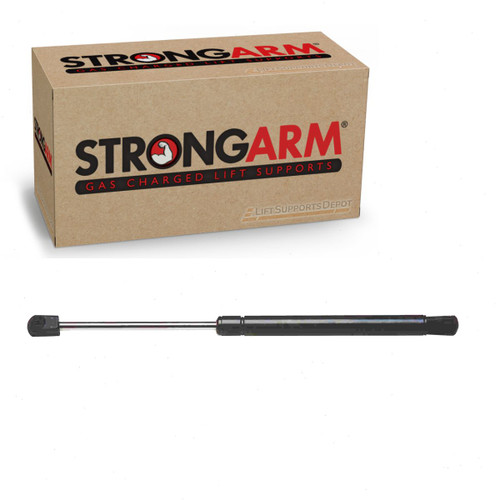

Strong Arm 6309 Gas Charged Hood Lift Support

$26.00 $23.40 Each
(You save $2.60 )
SKU:
10623W
UPC:
845998004681
Manufacturer Part Number:
6309
Description (Fitment):
R50 , R52, R53,
Include In Length Search:
No
Extended Length A [in]:
22.71
Include In mmty Search:
Yes
Body Connector End Fitting Type:
catalog/product/Images/endfitting/pc1464-2.jpg
Stroke C [in]:
8.75
Vehicle Location:
Hood
Extended Length:
22.71
Name (Fitment):
MADE BY STRONG ARM, FITS THE HOOD | 6309
Compressed Length B [in]:
13.96
Name (Category):
MADE BY STRONG ARM, FITS THE HOOD | 6309
Force (Lbs):
67
Interchange:
6309,SG202008,6309,8196068,14174,0262QL,4126XQ,6591Wn,7336VH,51327064485,51327064400,51237066566,51234360740,51237160818,51237175020,7175020,71750202,51237175020,41616801259
image_2:
image_1:
Body Connection:
Ball Socket U Band (Nylon)=10mm=3/8'=.39' 16 Deg Angle
Shaft Connection:
Ball Socket U Band (Nylon)=10mm=3/8'=.39'
Manufacturer Logo:
portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
BC Body Connector End Fitting Type TN:
portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
BC Shaft Connector End Fitting Type TN:
portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
Custom Qty:
2
Brand:
Strong Arm
Manufacturer:
Strong Arm
Fits the following applications:
hide
Part Number:
6309-W
Interchanges 4:



Interchanges 1:
6309,SG202008,6309,8196068,14174,0262QL,4126XQ
6591Wn,7336VH,51327064485,51327064400,51237066566
51234360740,51237160818,51237175020,7175020
71750202,51237175020,41616801259
Interchanges 2:



Interchanges 5:



Interchanges 3:



Quantity Sold As:
Each
End Fitting Size:
10MM
End Fitting Type:
Ball Socket
Cylinder Diameter [mm]:
hide
Rod Diameter (MM):
8
Cylinder Diameter (MM):
19
Finish:
Black
Force Newtons:
298
Application:
hide
Application Fitment:
hide
Description (Category):
hide

SKU: 10623W | UPC: 845998004681

Manufacturer: StrongArm

Does this fit my vehicle?

Fits the following applications: Fits the following Mini Cooper Years:
  • 2002-2006 | Base Convertible
  • 2002-2006 | Base Hatchback
  • 2005-2006 | Base Wagon
  • 2002-2006 | Chili Hatchback | Without Hood light 2 Supports
  • 2005-2006 | Clubman Hatchback
  • 2005-2006 | Clubman Wagon
  • 2005-2006 | Coupe Coupe | (mfr from 04/30/2007)
  • 2005-2006 | Coupe S Coupe
  • 2005-2006 | John Cooper Works Clubman Hatchback
  • 2005-2006 | John Cooper Works Clubman Wagon | With Hood Light 1 Support Only
  • 2005-2006 | John Cooper Works Convertible | Without Hood light 2 Supports
  • 2002-2006 | Luxury Hatchback
  • 2002-2006 | Pepper Hatchback | (mfr from 04/30/2007)
  • 2005-2006 | Roadster Convertible
  • 2005-2006 | Roadster John Cooper Works Convertible
  • 2002-2006 | S Chili Hatchback | Replacement Support. Bracket Not Included
  • 2005-2006 | S Clubman Hatchback
  • 2005-2006 | S Clubman Wagon
  • 2002-2006 | S Convertible | With Out Flip Window
  • 2002-2005 | S Coupe
  • 2002-2005 | S Hatchback
  • 2002-2005 | S Hot Chili Hatchback | R50 , R52, R53,
  • 2002-2005 | S Salt Hatchback
  • 2002-2005 | Salt Hatchback
  • 2002-2005 | Sport Hatchback

Share:

Quality you can trust! Strong Arm 6309 Lift Support with a Limited Lifetime Warranty, in-stock ready to ship here at Lift Support Depot.6309, SG202008, 6309, 8196068, 14174, 0262QL, 4126XQ6309, SG202008, 6309, 8196068, 14174, 0262QL, 4126XQ, 6591Wn, 7336VH, 51327064485, 51327064400, 512370665666591Wn, 7336VH, 51327064485, 51327064400, 51237066566
  • SKU: 10623W
  • BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
  • BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
  • Body Connection: Ball Socket U Band (Nylon)=10mm=3/8'=.39' 16 Deg Angle
  • Body Connector End Fitting Type: catalog/product/Images/endfitting/pc1464-2.jpg
  • Brand: Strong Arm
  • Compressed Length B [in]: 13.96
  • Custom Qty: 2
  • Cylinder Diameter (MM): 19
  • Description (Fitment): R50 , R52, R53,
  • End Fitting Size: 10MM
  • End Fitting Type: Ball Socket
  • Extended Length: 22.71
  • Extended Length A [in]: 22.71
  • Finish: Black
  • Force (Lbs): 67
  • Force Newtons: 298
  • Interchange: 6309,SG202008,6309,8196068,14174,0262QL,4126XQ,6591Wn,7336VH,51327064485,51327064400,51237066566,51234360740,51237160818,51237175020,7175020,71750202,51237175020,41616801259
  • Interchanges: 6309,SG202008,6309,8196068,14174,0262QL,4126XQ
    6591Wn,7336VH,51327064485,51327064400,51237066566
    51234360740,51237160818,51237175020,7175020
    71750202,51237175020,41616801259












  • Manufacturer: Strong Arm
  • Manufacturer Part Number: 6309
  • Name (Category): MADE BY STRONG ARM, FITS THE HOOD | 6309
  • Name (Fitment): MADE BY STRONG ARM, FITS THE HOOD | 6309
  • Part Number: 6309-W
  • Quantity Sold As: Each
  • Rod Diameter (MM): 8
  • Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8'=.39'
  • Stroke C [in]: 8.75
  • Vehicle Location: Hood
  • image_1: 6184-wbv2.jpg
  • image_2: delete.jpg

There are no reviews yet.

Write a Review
Fits the following Mini Cooper Years:
  • 2002-2006 | Base Convertible
  • 2002-2006 | Base Hatchback
  • 2005-2006 | Base Wagon
  • 2002-2006 | Chili Hatchback | Without Hood light 2 Supports
  • 2005-2006 | Clubman Hatchback
  • 2005-2006 | Clubman Wagon
  • 2005-2006 | Coupe Coupe | (mfr from 04/30/2007)
  • 2005-2006 | Coupe S Coupe
  • 2005-2006 | John Cooper Works Clubman Hatchback
  • 2005-2006 | John Cooper Works Clubman Wagon | With Hood Light 1 Support Only
  • 2005-2006 | John Cooper Works Convertible | Without Hood light 2 Supports
  • 2002-2006 | Luxury Hatchback
  • 2002-2006 | Pepper Hatchback | (mfr from 04/30/2007)
  • 2005-2006 | Roadster Convertible
  • 2005-2006 | Roadster John Cooper Works Convertible
  • 2002-2006 | S Chili Hatchback | Replacement Support. Bracket Not Included
  • 2005-2006 | S Clubman Hatchback
  • 2005-2006 | S Clubman Wagon
  • 2002-2006 | S Convertible | With Out Flip Window
  • 2002-2005 | S Coupe
  • 2002-2005 | S Hatchback
  • 2002-2005 | S Hot Chili Hatchback | R50 , R52, R53,
  • 2002-2005 | S Salt Hatchback
  • 2002-2005 | Salt Hatchback
  • 2002-2005 | Sport Hatchback

Please Note

Items sold on our site are sold individually unless otherwise noted. Images are to illustrate front and rear of supports, please purchase the quantity needed in your order. Thank you!
