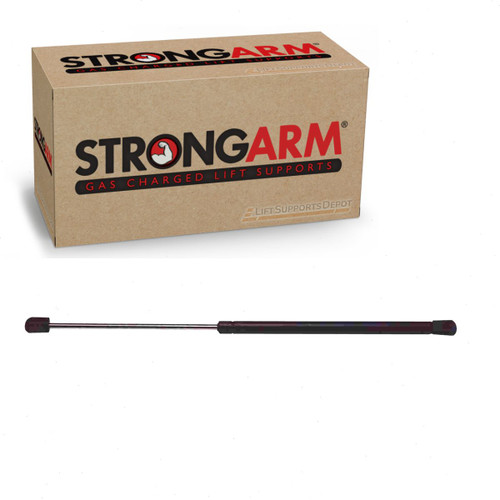

Strong Arm 6901A lift support for the 2003-2023 GMC Savana 2500 rear side panel. 20.59 in extended length, 26 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 12.21 in compressed length. Direct-fit replacement for the original support, restoring proper lift and hold on a sagging or failing rear side panel. Also fits the 2003-2023 GMC Savana 3500 and 2003-2023 GMC Savana 1500. Fitment note: Rear Side Body Panel. Sold individually; replacing both sides is recommended. Stroke is 6.25 in. The rod measures 6 mm and the cylinder 15 mm. Backed by a 1-year warranty.
- SKU: 6901A-W
- A Interchanges: 15176196, 6901, 6901A, 8196360, 9918VF, SG330047, SG330047
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 12.21
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 20.59
- Finish: Black
- Force (Lbs): 26
- Force Newtons: 116
- Include In Length Search: No
- Include In mmty Search: Yes
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Rear Side Panel | 6901A
- Quantity Sold As: Each
- Ref Code: 16
- Rod Diameter (MM): 6
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 6.25
- UPC: 845998011009
- Vehicle Location: Rear Side Panel
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
