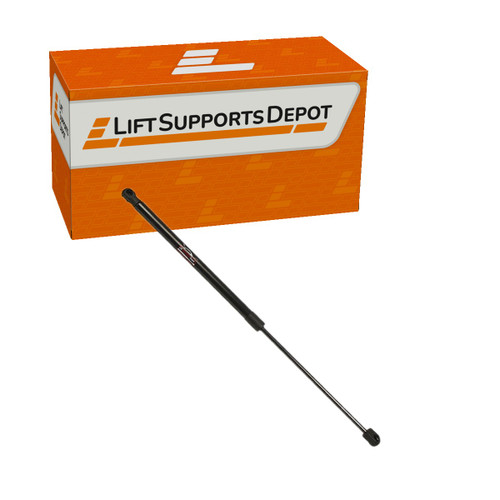

Lift Supports Depot PM1111 lift support for the 2009-2015 Honda Pilot rear glass window. 17.83 in extended length, 30 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 10.55 in compressed length. Replaces the original support to bring a sagging or slow-closing rear glass window back to proper lift and hold. Sold one per unit; replacing the pair keeps lift force even. Stroke is 7.09 in. The rod measures 8 mm and the cylinder 18 mm. Finished in black. Includes a 1-year warranty.
- SKU: PM1111-W
- A Interchanges: 240917, 74825SZAA01, 74825-SZA-A01, 74875SZAA01, 74875-SZA-A01, PM1111, SG326019
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 10.55
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 17.83
- Finish: Black
- Force (Lbs): 30
- Force Newtons: 133
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Rear Glass Window | PM1111
- Quantity Sold As: Each
- Ref Code: 148
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Stroke C [in]: 7.09
- Vehicle Location: Rear Glass Window
1 Review Hide Reviews Show Reviews
-
17.91'' LIFT SUPPORTS DEPOT PM1111 LIFT SUPPORT | PM1111-W
They came fast and fit perfect, so far working great. Thanks
