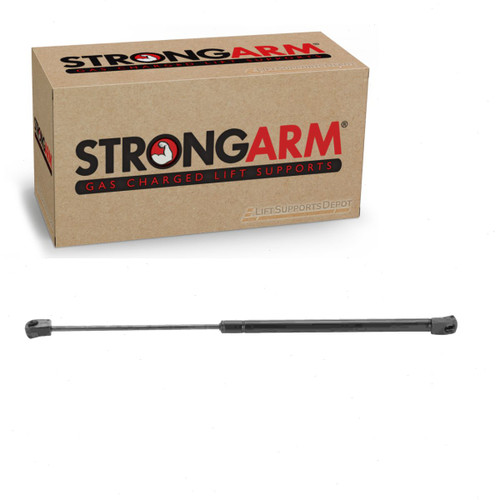

Strong Arm 6649 lift support for the 2009-2015 Honda Pilot rear glass window. 17.87 in extended length, 34 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 11.12 in compressed length. Replaces the original support to bring a sagging or slow-closing rear glass window back to proper lift and hold. Sold one per unit; replacing the pair keeps lift force even. Stroke is 6.75 in. The rod measures 6 mm and the cylinder 15 mm. Finished in black. Includes a 1-year warranty.
- SKU: 6649-W
- A Interchanges: 96649, 240917, 241395, 344404, 344643, 384795, 385034, 464825, 465064, 6649, 74825SAZR01, 74825SAZR010, 74825SZAA01, 74825-SZA-A01, 74825SZAA011, 74825SZAA012, 74825SZAR01, 74875SAZR01, 74875SAZR010, 74875SZAA01, 74875-SZA-A01
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 11.12
- Custom Qty: 2
- Cylinder Diameter (MM): 15
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 17.87
- Finish: Black
- Force (Lbs): 34
- Force Newtons: 151
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Rear Glass Window | 6649
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 6
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 10 Deg Angle
- Stroke C [in]: 6.75
- UPC: 845998015892
- Vehicle Location: Rear Glass Window
There are no reviews yet.
Write a Review
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
