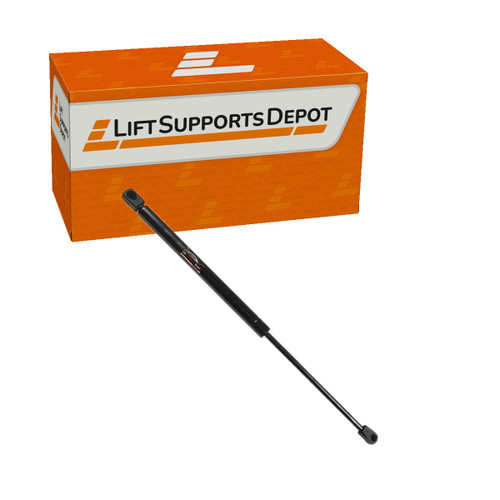

Lift Supports Depot PM3165 lift support for the 2008-2012 Ford Escape rear glass window. 17.48 in extended length, 33 lbs of force, a 10 mm ball socket (3/8 in) body end and a 8 mm ball socket (5/16 in) shaft end, and 10.31 in compressed length. Direct-fit replacement that restores full lift and hold to a rear glass window that has started to sag or drift down. Also fits the 2008-2011 Mercury Mariner and 2008-2012 Ford-Mexico Escape. Sold individually. Most applications use two, so replace both together. Covered by a 1-year warranty.
- SKU: PM3165-W
- A Interchanges: 631923, 8L8Z 7842104 A, 8L8Z 7842105 A, 8L8Z7842104A, 8L8Z7842105A, PM3165, SG304099
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/pc1249-2.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Compressed Length B [in]: 10.31
- Custom Qty: 2
- Cylinder Diameter (MM): 18
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 17.48
- Finish: Black
- Force (Lbs): 33
- Force Newtons: 147
- Include In Length Search: No
- Include In mmty Search: Yes
- MSDS Info: Click Here to Download the Lift Supports Depot MSDS Sheet.
- Manufacturer: Lift Supports Depot
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/liftsupportlogosmall.gif
- Name (Fitment): Made by Lift Supports Depot Fits the Rear Glass Window | PM3165
- Quantity Sold As: Each
- Ref Code: 94
- Rod Diameter (MM): 8
- Shaft Connection: Ball Socket U Band (Nylon)=8mm=5/16"=.32"
- Stroke C [in]: 6.25
- Vehicle Location: Rear Glass Window
