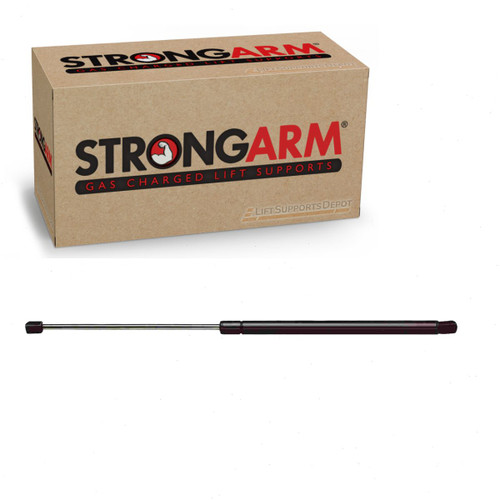

Strong Arm 6763 lift support for the 2011-2020 Toyota Sienna liftgate. 22.06 in extended length, 178 lbs of force, 10 mm ball socket (3/8 in) end fittings, and 15.56 in compressed length. Direct-fit replacement that restores full lift and hold to a liftgate that has started to sag or drift down. Fitment note: With Power Lift Gate & 6 Speakers. Sold individually. Most applications use two, so replace both together. Cross-references 96763, 028516, 028804, 029362, 030176, 043552, 043791, 046181, 046420, 602305, 602544, 623809, 624048, 625004. Covered by a 1-year warranty.
- SKU: 6763-W
- A Interchanges: 96763, 028516, 028804, 029362, 030176, 043552, 043791, 046181, 046420, 602305, 602544, 623809, 624048, 625004, 625243, 6763, 681166, 681405, 682600, 682839, 6895008020, 68950-08020, 6895008020B, 6895008020C, 6895008021
- BC Body Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- BC Shaft Connector End Fitting Type TN: portal.liftsupportsdepot.com/images/endfitting/ballsocketnylon10mm383916deg.gif
- Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
- Compressed Length B [in]: 15.56
- Custom Qty: 2
- Cylinder Diameter (MM): 22
- End Fitting Size: 10MM
- End Fitting Type: Ball Socket
- Extended Length A [in]: 22.06
- Finish: Black
- Force (Lbs): 178
- Force Newtons: 792
- Include In Length Search: No
- Include In mmty Search: No
- Manufacturer: Strong Arm
- Manufacturer Logo: portal.liftsupportsdepot.com/images/nextopia/strongarmlogosmall.gif
- Name (Fitment): Made by Strong Arm Fits the Liftgate | 6763
- Quantity Sold As: Each
- Ref Code: 0
- Rod Diameter (MM): 10
- Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
- Stroke C [in]: 6.50
- UPC: 840265735831
- Vehicle Location: Liftgate
1 Review Hide Reviews Show Reviews
-
Best Supports on the Market
I ordered these years ago as a replacement for the OEM struts that had failed. They recently had an issue so I called Strong Arm and customer service sent them out straight away all I had to pay was the $10 shipping fee. Had them installed two days later.
When used in accordance with the StrongArm Vehicle Application Listing, AVM warrants the StrongArm Gas Charged Lift Support against any defects in manufacturing or workmanship for a period of 12 months from installation.
